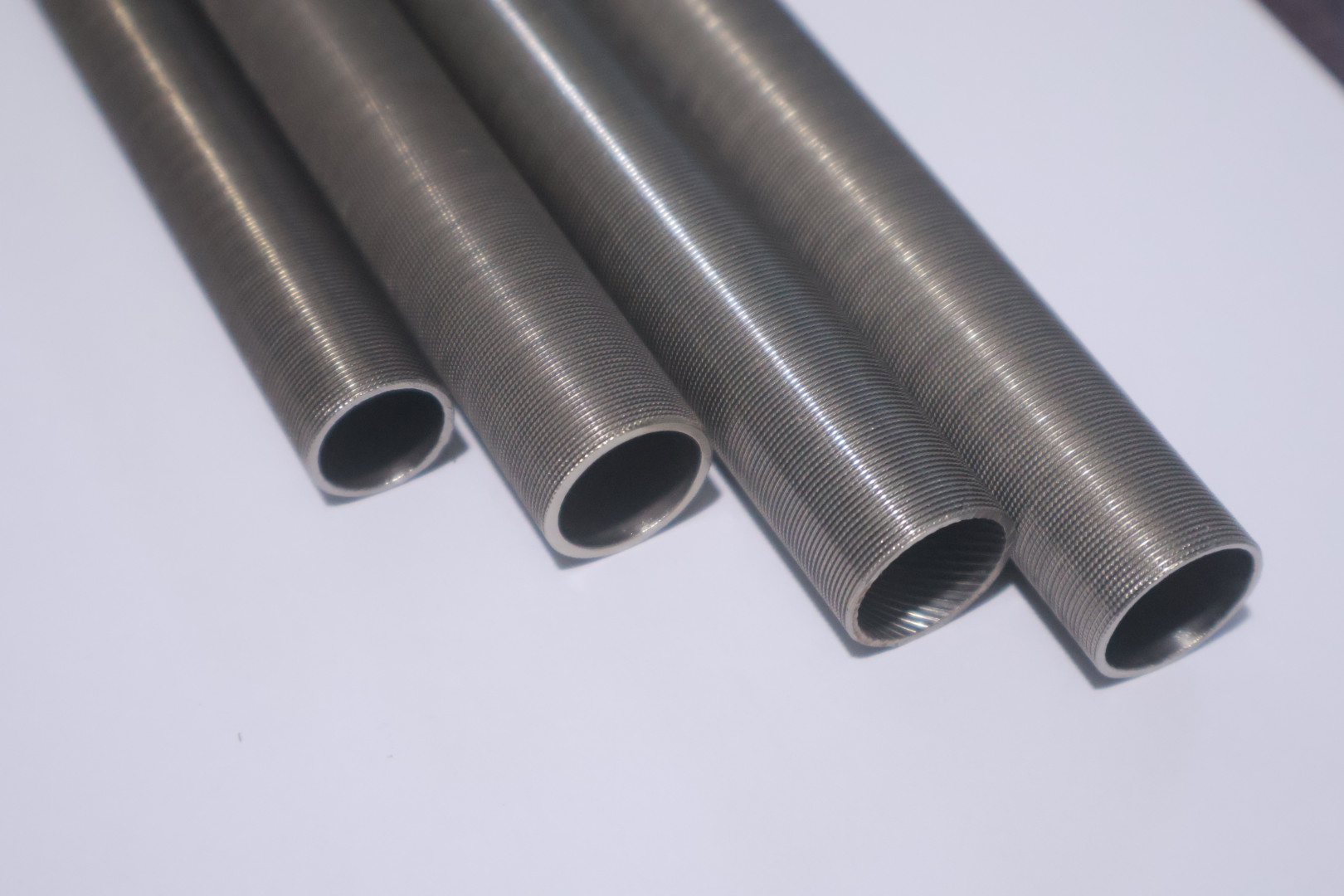

Evaporator Tube
- product brand:Yexiang
- رقم الكشك：B3H94
- product specification:
- product category:Assembly Supplies for Refrigeration and Air Conditioning-Pipes-Pipe
- product introduction:The fish scales like profiles are distributed uniformly on the enhanced surface of the
tube while the circular channels. The special porous structure has provided lots of
nucleation points which are formed helically under the profiles. The bubbles and the tube
wall to critical in flooded boiling. It has reduced the thickness of the liquid film between
decrease the thermal resistance. Meanwhile, it can accelerate the circulation of liquid
and bubbles in the fin root channels and cavity pockets due to the thermosiphon effect,
which improves both internal and external convection. This circulation can also help to
remove impurities to reduce fouling. In this special configuration, refrigerant can boil more
bubbles continuously at less superheat. The shell side heat transfer coefficient can be
as high as 30 times that of a plain tube.
